A warning light comes on, a part gets ordered, the part goes in, and two weeks later the same light is back. That sequence is expensive, and it is almost always caused by the same thing: the fault was never actually diagnosed. It was guessed at.
Electrical faults reward patience more than almost any other kind of vehicle work, because the component that sets the code is frequently not the component that failed. This is a working method for narrowing down an electrical problem before any money is spent on parts.
Replacing the part named in the code is the most common mistake

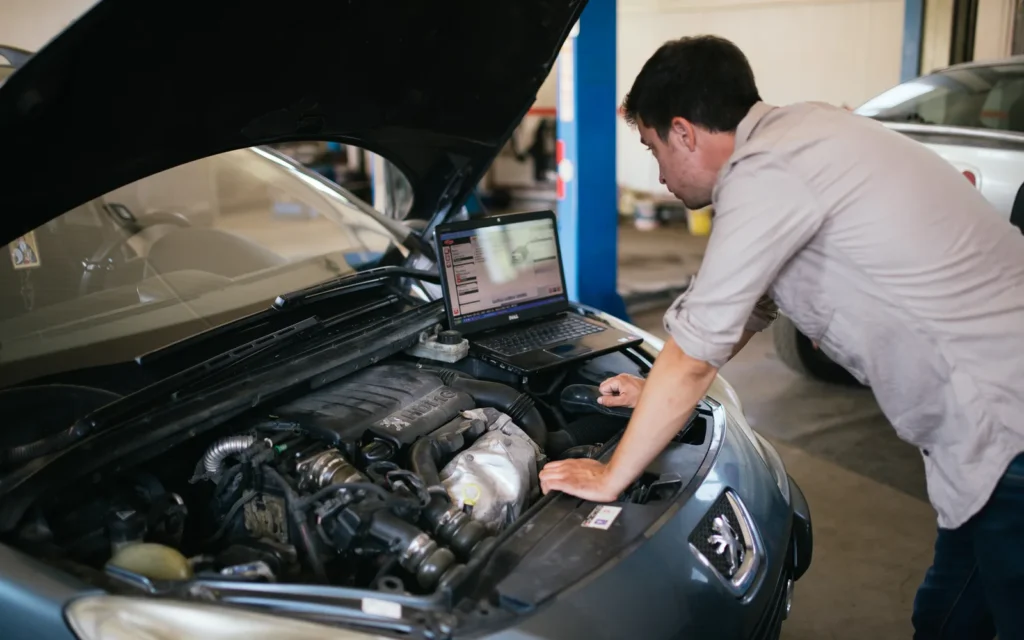

A diagnostic trouble code describes a circuit or a condition, not a broken part. A code such as “oxygen sensor circuit low voltage” tells you the control module saw a voltage outside the expected range on that circuit. That result can come from a failed sensor, but it can equally come from a chafed wire, a corroded connector pin, a poor ground, a leaking exhaust, or a fault inside the module reading the circuit.
The code is the start of the diagnosis. Treating it as the conclusion is what produces the replace-and-repeat cycle.
Establish the basics before testing anything clever
Most electrical faults that get escalated to specialists turn out to have failed one of these checks:
- Battery state of health. A battery that reads 12.6 V at rest but collapses under load will produce erratic, unrelated faults across multiple modules. Load-test it rather than trusting a static reading.
- Charging output. Check voltage at the battery with the engine running and again with a realistic load applied — headlights, blower on high, rear defogger.
- Ground integrity. Engine-to-body and body-to-battery grounds are a routine failure point, especially where a strap bolts to a painted or corroded surface.
- Recent work. Anything fitted, disturbed or disconnected shortly before the fault appeared is a prime suspect, including aftermarket accessories spliced into existing circuits.
Voltage drop testing finds what a continuity test misses
A continuity test tells you a circuit is connected. It does not tell you whether that circuit can carry current. A wire with a single strand of copper remaining will pass a continuity test and fail completely under load.
Voltage drop testing measures the circuit while it is working, which is why it catches problems a static test cannot. With the circuit energised and loaded, place the meter across the section you want to assess and read the voltage lost across it.
| Measured across | Generally acceptable | Suggests a problem |
|---|---|---|
| A single cable run | Up to about 0.2 V | Noticeably higher under load |
| One connection or terminal | Up to about 0.1 V | Rising as load increases |
| A complete ground path | Up to about 0.3 V | Climbing while accessories switch on |
Always check the manufacturer figures for the circuit you are working on, because high-current starting circuits and low-current signal circuits are held to different standards. Use the table above as a general orientation, not a specification.
Test at the load, then work back
If a component is not receiving what it needs, measure at the component first. That single reading splits the circuit in half and tells you whether to investigate the supply side or the ground side. Repeating that split is far faster than tracing a harness end to end.
Intermittent faults need conditions, not luck
A fault that is not present when you test it cannot be diagnosed by testing. It has to be provoked. The useful variables are heat, vibration, moisture and electrical load, and they can usually be reproduced deliberately:
- Flex and tug harness sections by hand while watching live data, particularly where a loom crosses a hinge, a suspension pivot or a hot exhaust component.
- Let the vehicle reach full operating temperature before retesting. A surprising number of module and solder faults only appear warm.
- Note whether the fault correlates with rain, car washes or damp mornings, which points strongly at connector sealing and water ingress.
- Record freeze frame data when the code sets. Engine speed, load, coolant temperature and vehicle speed at the moment of the fault describe the exact conditions you need to recreate.
If the fault only appears when several systems are drawing current at once, suspect a shared supply, a shared ground or a failing charging system before suspecting any individual module.
A parasitic draw is a measurement, not an opinion
If a vehicle flattens its battery overnight, the draw can be measured rather than guessed. With the vehicle fully asleep — which on a modern car can take anything from several minutes to well over half an hour after the doors are locked — a current clamp or ammeter in series with the battery will show what is still awake.
Typical quiescent draw on a modern vehicle sits in the low tens of milliamps. A reading well above that, and stable, points to a module that is not shutting down. Pulling fuses one at a time while watching the reading isolates the circuit responsible.
When the wiring checks out and the module is the fault
Sometimes every check passes and the fault is genuinely inside the control module. The usual signs are consistent and recognisable:
- Supply voltage and grounds at the module are correct under load.
- The sensor or actuator has been verified good, ideally by substitution or by direct measurement of its output.
- The module does not respond to commands, drops off the network intermittently, or produces implausible values on multiple unrelated circuits at once.
- Displays, gauges or backlighting behave erratically in a way no external circuit explains.
At that point the decision is what to do with the module, and replacement is not the only option. Many electronic modules fail because of a specific, repairable cause — cracked solder joints from years of thermal cycling, failed capacitors, worn stepper motors in a cluster, or damaged internal drivers. Repairing the original unit avoids the programming, coding and immobiliser work that a replacement module usually requires. We cover that decision in detail in module replacement versus repair.
Takeaways
- Read the code as a description of a circuit, not a verdict on a part.
- Confirm battery, charging and grounds before anything else.
- Use voltage drop testing under load; continuity alone will mislead you.
- Provoke intermittent faults with heat, vibration, moisture and load rather than waiting for them.
- Measure parasitic draw instead of estimating it.
- Only conclude the module is faulty once its supply, grounds and inputs have been proven good.
